Anatomy of a Skateboard Ramp: 3D Visualization and Materials Math

I have a joke that if you ever meet a skateboarder over the age of 40, you’re likely looking a reasonably accomplished amateur carpenter. It was historically a DIY sport, and many of us learned how to build ramps more or less on our own, with mixed results. Building a skateboard ramp isn’t necessarily expert level carpentry, but there are important details and some common conventions that matter a great deal. For many of us, it was an exercise in optimism meeting carpentry. You start with a vision, a backyard quarterpipe or maybe a garage mini ramp, and quickly drown in questions. How tall, what radius, how many sheets of plywood? What about Skatelite or some other composite surface, even remotely in budget? What lumber lengths do I need? Will it actually look like the thing in my head?

After I had a friend lament having no clue how much his new dream ramp might cost, I thought wouldn’t it be cool to have a little lightweight CAD’ish tool for visualizing and obtaining a materials list for skateboard ramps. I built the Ramp Designer to answer the tricky questions surrounding ramp design, and help my friend come up with a budget for his ramp. It’s a free, browser-based tool that generates a real-time 3D model of your ramp and calculates a complete materials list, down to the screw count.

Why Ramp Design Is Harder Than It Looks

Before going any further, it’s worth noting that I’m specifically talking about curved skateboard ramps where the curve follows a fixed radius. In skateparks you will no doubt find banks, ledges, slants, and maybe even curved ramps with elliptical (varying) transitions, but classic quarterpipes and halfpipes you see in backyards or X-Games Vert are the focus here. Given that, a wooden skateboard ramp follows a certain recipe to allow for the curve via a layered construction: plywood side templates cut to a precise arc profile (radius), structural ribs running across the width, a plywood deck at the top, two layers of surface plywood bent over the ribs, now days mercifully a specialized riding surface on top of that, and a steel coping pipe at the lip. Each layer has its own material, its own fastener requirements, and its own set of constraints. And by the way, I said mercifully about the top surface because modern skate-specific composite surfaces like Skatelike, Ramp Armor, and Gator Skins dramatically improve the safety and usability of ramps - no more rot, and no more splinters!

The curve itself, the transition, is what makes a ramp a ramp and not a wedge. A good transition follows a circular arc carefully matched to the height of the ramp, and the radius of that arc determines how the ramp feels to ride. A tight radius (small number) produces a quick, steep, snappy transition. A large radius creates a mellow, flowing curve. The relationship between height, radius, and the resulting arc length drives every other calculation in the build. And generally speaking there isn’t entirely a right or wrong, just extremes. For example, an extremely tight radius is more like a backyard pool like you might’ve seen in the Dogtown and Z-Boys documentary.

The Arc: Circular Geometry in Practice

The transition profile is a circular arc. Given a ramp height h and a transition radius r, the arc sweeps from horizontal (the flat approach) to vertical (or near-vertical at the lip). The math is clean:

θ_max = acos(1 - h/r)    // when h ≤ r
arc_length = r × θ_max

For mini ramp transitions where the height is less than or equal to the radius, this produces a smooth curve from 0° to θ_max, meaning the curve never makes it to 90°, it never reaches vertical. But some ramps deliberately go vertical, the height exceeds the radius, and that makes them vert ramps. In that case, the curve is a full quarter circle (90°) plus a straight vertical section at the top:

// Vert ramp (h > r)
arc_length = r × π/2 + (h - r)

The simulator generates the arc as an array of coordinate pairs, sampling the curve at regular angular intervals. These points define the side template profile that gets cut from plywood, and they’re the foundation for positioning every rib, surface sheet, and seam line in the 3D model.

Curve Offsetting for Layers

A ramp has ribs inset and flush to the transition curve with multiple layers stacked on top, typically two subsurface plywood layers, followed by a third riding surface layer. Each layer needs to follow the same curve, but offset outward by the material’s thickness. It’s worth noting some metal-framed ramps like Tony Hawk’s famous portable warehouse ramp forego the two layers of subsurface and just go with one, but the ramp is engineered specifically to allow that.

To get the radius to straighten to vert involves offsetting the circular arc, which is straightforward in theory (just increase the radius), but the simulator handles it with a general-purpose offsetCurve() function that works on arbitrary point arrays. At each point, it computes the perpendicular normal using the slope between neighboring points, then shifts the point outward by the offset distance.

This approach handles the transition from arc to vertical extension seamlessly, without special-casing the geometry at the inflection point.

The Materials Engine

The materials calculator is where abstract geometry meets the lumber yard. Every dimension in the model maps to a real-world purchase decision, and the calculator accounts for constraints that CAD software ignores.

Lumber Length Rounding

You can’t buy a 9-foot 2x6. Lumber comes in standard lengths: typically 8’, 10’, 12’, 14’, and 16’. The calculator rounds every piece up to the nearest available length. A rib that measures 8'3" in the model becomes a 10-footer on the shopping list. This is a small detail that prevents a lot of frustration at the lumber yard. It also helps you use the designer as a playground to experiment with materials sweet spots - wider is always better for skateboard ramps, and being able to know exactly the price difference between +4’ and +8’ in width is a big deal.

Sheet Goods Efficiency

Plywood comes in 4×8 sheets. The calculator optimizes sheet counts by checking whether multiple pieces can be cut from a single sheet. For side templates, if the ramp height is 48" or less and the arc length fits within 96", two sides can be cut from one sheet. Taller vert ramps need a multiple sheets per side, and the 3D model shows the horizontal seam at 4 feet where the two pieces join.

Surface plywood is simpler: the calculator computes total surface area (arc length × width), divides by 32 square feet per sheet, and rounds up. Two layers are always used — the inner layer provides structural rigidity while the outer layer creates a smooth riding surface. Currently the tool forces 4x8 sheets, which is correct for plywood but specialty surfaces like Skatelite also come in larger dimensions up to 5x12 - that may be a future addition to the tool.

Rib Spacing and T-Ribs

Ribs are the structural backbone of the transition. They run perpendicular to the riding direction, spaced at regular intervals along the arc. The simulator offers three spacing options:

But ribs aren’t uniform. And this is where some ramp builders diverge and have different techniques, but I like this one. Every 4 feet along the arc (where surface plywood sheets butt together), the simulator places a T-rib instead of a standard rib. A T-rib is constructed out of two ribs joined together to form a T, providing more surface for the plywood sheets to meet and form a seam. Think of it as a rib T having a cap perpendicular to the stem, creating a wider bearing surface at the sheet seam. This prevents the plywood edges from telegraphing through the riding surface over time.

The 3D model clearly renders T-ribs so builders can identify them during assembly. It’s somewhat a matter of construction preference where you start the T’s, as it has to do with where you start the plywood sheets. What’s important is that the T’s form a predictable pattern so that at least the first layer of plywood seams always meet on a T, for example every 4'.

Fastener Estimation

Screws are the most tedious part of a materials list. The calculator estimates counts based on fastener density per component:

• Structural screws (#10 × 3"): rib-to-side connections, framing joints, deck joists
• Surface screws (#8 × 2"): plywood surface layers, riding surface material

Counts are rounded to the nearest 25 or 50 to match bulk packaging. For outdoor builds, the calculator specifies coated or stainless fasteners and adds a note about corrosion resistance. Screws are definitely the one part of the build where you can use your own judgement if you find something you like in a slightly different length. There’s also debate over whether screws in the final riding surface should align hit ribs - manufacturers say yes, practical ramp builders sometimes say no.

The Full Shopping List

A complete materials list for a typical 4-foot tall, 8-foot wide quarterpipe might include:

The half pipe configuration doubles most of these quantities and adds flat bottom materials (joists, surface, framing).

The 3D Model: Eight Layers Deep

The 3D visualization is built with Three.js and renders the ramp as eight distinct layer groups:

1. Sides — 3/4" plywood transition templates (don’t skimp and go thinner with these)
2. Ribs — 2×6 or 2×4 structural members following the arc
3. Back Frame — 4×4 posts and plates supporting the deck
4. Deck — 3/4" plywood platform with joists
5. Surface Layer 1 — 3/8" plywood
6. Surface Layer 2 — 3/8" plywood
7. Top Surface — Riding material (Skatelite, Masonite, etc.)
8. Coping — 2⅜" steel pipe at the lip

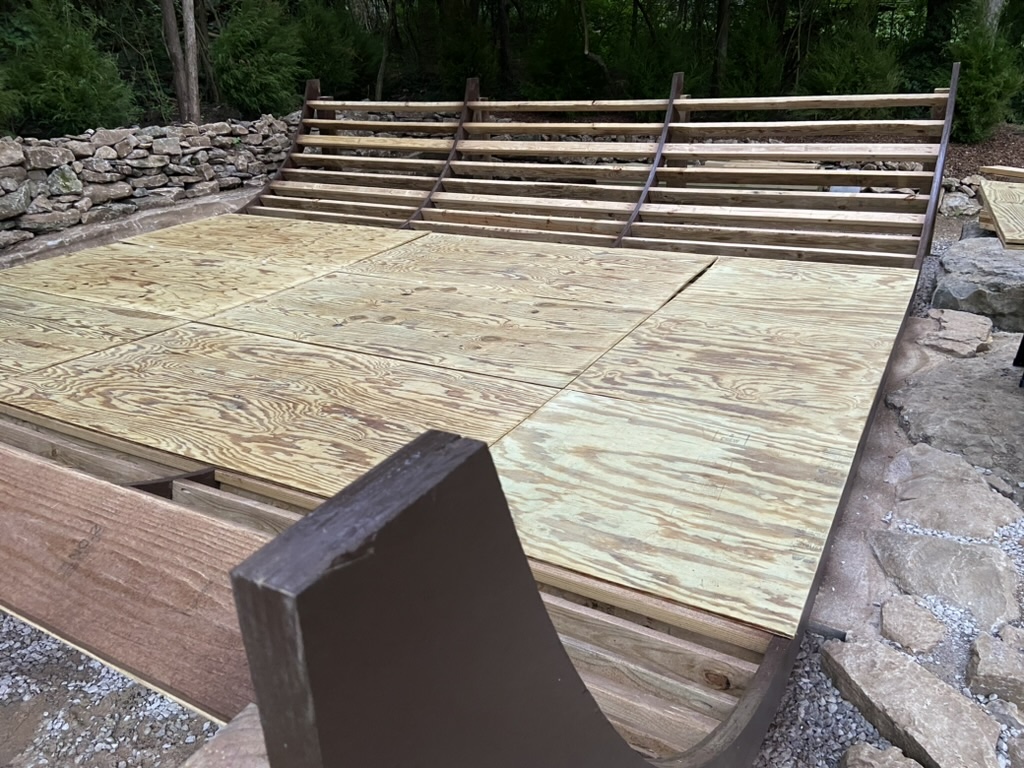

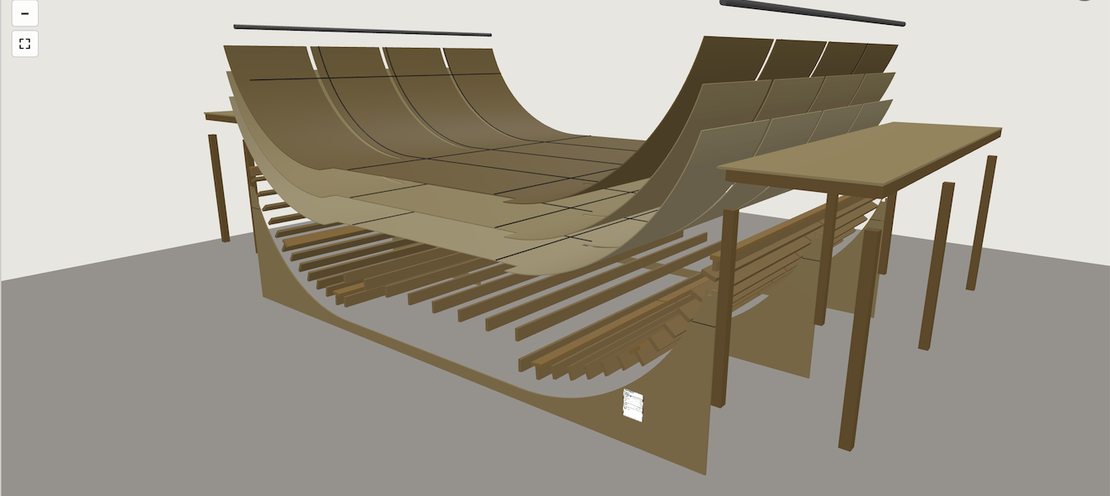

Each layer is a separate Three.js group, which enables the explode view, a slider that separates the layers vertically so builders can see the assembly order and understand how the pieces fit together.

Building the Side Templates

The side templates are the most complex geometry in the model. They’re created as THREE.Shape objects, 2D profiles defined by the arc points, and then extruded to 3/4" thickness using ExtrudeGeometry. The profile includes the arc curve, a vertical edge at the back, a horizontal edge at the bottom, and the deck platform at the top.

For ramps taller than 4 feet, the model adds a horizontal seam line showing where two 4×8 plywood sheets would join. This is a visual reminder that tall side templates require multiple sheets and careful alignment during construction.

Positioning Ribs Along the Arc

Each rib is a rectangular box positioned at a point along the arc and rotated to match the curve’s tangent angle at that point. The rotation is critical, a rib that’s not rotated perfectly tangent won’t square up to the plywood surface, providing far less structural support.

The tangent angle at any point on the arc is calculated from the slope between adjacent arc points. The rib is then rotated around its center to align perpendicular to the curve, ensuring full contact with the surface plywood.

Surface Sheet Seams

Real plywood sheets are 4×8 feet. The simulator renders individual sheets with visible seams between them:

• Arc seams appear every 8 feet along the curve (where sheets butt end-to-end)
• Width seams appear every 4 feet across the ramp (where sheets sit side by side)

These seams are rendered as thin dark lines on the outermost visible surface. They’re not just cosmetic — they help builders plan sheet layout and understand where T-ribs need to be placed for support. I should add, one thing the tool doesn’t do just yet is offset the seams on the plywood layers. In practice you would shift layers a fixed amount, say 2’ in each dimension so that seams overlap and you don’t risk future bumps in the ramp.

The Coping

The coping is a steel pipe rendered as a THREE.CylinderGeometry with metallic material properties (metalness: 0.7, roughness: 0.3). It sits at the lip of the transition, where the arc meets the deck. Getting the coping position right is critical — it’s the last thing a skater touches before going airborne, and in the 3D model it helps verify that the transition profile looks correct.

The framing of how coping joins a ramp, or the coping pocket, is one of the trickiest aspects of ramp building, and varies widely from builder to builder. I choose a fairly straightforward approach here since the goal was more about visualizing the ramp and figuring out materials. I haven’t ruled out a future coping pocket tool to break down how exactly to frame it and get the surface and deck pop dialed in.

Design Decisions That Mattered

Indoor vs. Outdoor Toggle

The environment toggle switches more than just material names. Outdoor builds use pressure-treated (PT) lumber, which is heavier, more expensive, and requires coated fasteners. The calculator updates every line item: PT 2×6 instead of 2×6, coated screws instead of standard, and adds notes about ground contact treatment for the bottom plates.

This is a single checkbox that changes 30+ line items in the materials list. Getting it wrong means either building an outdoor ramp with wood that will rot in two seasons, or spending 40% more than necessary on an indoor build.

Section Width: 4’ vs. 8'

Section width determines how far apart the side templates are spaced. At 4-foot sections, a standard 8-foot-wide ramp has three side templates (both edges plus center) and two sections of ribs. At 8-foot sections, it has two templates (edges only) and one section of ribs. Some people like to overdo it structurally with narrower sections but 8-foot is pretty standard.

The 4-foot option is labeled “overbuilt” because it doubles the plywood cost for side templates and adds significant weight. The extra rigidity prevents the surface from developing a noticeable bounce between supports but at the expense that you have to cut and assemble a lot more transitions and perfectly align them.

The Explode View

The explode slider was inspired by technical illustrations in woodworking manuals. Dragging it from 0% to 100% lifts each layer progressively — sides stay at the bottom, coping rises to the top, and everything in between fans out proportionally.

The maximum separation scales with ramp height (2× the height), so a 4-foot mini ramp explodes to a manageable 8-foot spread while an 11-foot vert ramp expands to 22 feet. Surface sheets also spread apart laterally (along the z-axis) so individual sheets are visible even when multiple sheets span the width.

The Transition Facts Sticker

A small detail: the 3D model includes a procedurally generated “sticker” on the near side template, about 40% up the arc. It displays the ramp’s key specs — height, radius, width, deck depth, surface material, coping presence — and an “Overall Vibe” rating based on the combination of specs.

It’s whimsical, but it serves a purpose: it gives the 3D model a sense of personality and makes screenshots immediately informative when shared with friends or posted for feedback. And it is generated using another fun tool called Transition Facts. Try it out!

What Was Learned

Lumber math is surprisingly hard. The gap between theoretical geometry and real-world lumber is where most ramp builds go wrong. You can calculate a perfect radius in a spreadsheet, but if you don’t account for lumber length standards, sheet goods sizes, and realistic fastener quantities, you’ll make three trips to the hardware store instead of one.

Exploded views teach better than assembly diagrams. Static diagrams show you what a ramp looks like. Exploded views show you how it goes together. The slider interaction — dragging layers apart and watching them fan out — builds spatial understanding faster than any set of written instructions.

PDF export matters more than expected. I added PDF export as an afterthought. It turned out to be the most-requested feature in early testing. People want to take their ramp design to the lumber yard, and a phone-friendly PDF with the 3D view and materials list is exactly the format that works.

Try It

The Ramp Designer runs entirely in your browser. No account, no install, no tracking. Choose quarterpipe or half pipe, set your dimensions, and start designing.

The Ramp Designer is a free experiment from Stalefish Labs.
